SVF-4028 Transparent Box

SVF-4028 Transparent Box

  • Beaded edges for extra rigidity
  • Square solvent sealed corners
  • up to 40 cycles per minute
  • Set-up time: 30 minutes
  • Final tune-up time: 15 minutes

Produce High Quality :

  • Transparent Boxes for jewelry,
  • Cosmetic boxes
  • Textile boxes
  • Stationery boxes
  • Toy boxes
  • Game boxes
  • Gift boxes

Watch It In Action

Specifications

Size Range: BOX: (Dependent on blank size) Min. 76 x 25 x 10 mm Max. 405 x 280 x 12.7 mm or 405 x 203 x 76 mm

BLANK: Min. 95 x 45 mm Max. 558 x 355 mm** Material Thickness: 0.12 to 0.25 mm

Production Speed: Up to 40 cycles per minute

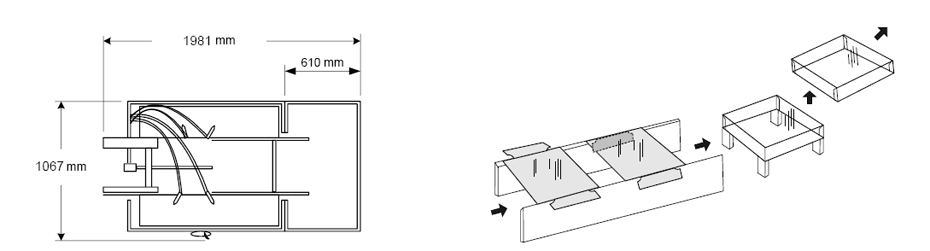

Floor Space: 2125 x 1500 x 1752 mm

Discharge Height: 980 to 1045 mm

Energy Requirements: 3x380V + N Solvent: 4,5kW Ultrasonic: 8kW Air: 260l/min 6 bar

Shipping: WEIGHT: Model SVF-XL: 1325 kg Model 4028: 1120 kg
